infinias Ethernet-Enabled Integrated Door Controller (eIDC)

Part # S-EIDC32

3X Logic Wiegand Keypad
Uniview Cameras

Overiview & Key Features



The 3xLOGIC Access Control Readers and Door Accessories are a robust, affordable, and outdoor friendly line of devices capable to meet the need of any and all locations. The reader was designed for sleek and attractive aesthetic and its moulded aluminum body makes them desirable for securing any doors or gates. This elegant family of products with a slim and compact design supports a new and innovative door status visibility while ensuring that the environment is safe for all employees, customers, and guests.

​

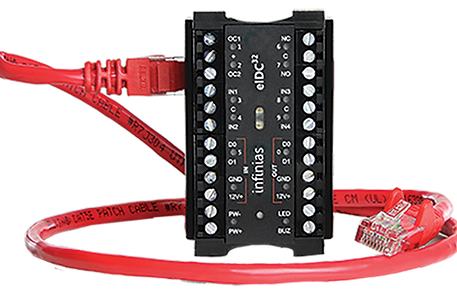

The infinias eIDC32 door controller is a compact, 2 inch PoE-enabled door controller that makes installation at the door simple and scalable. This tiny device supports single door to multi-site IP-based access control systems and manages up to 64,000 credentials. Our door controllers are fully-integrated and make adding a door to your network easy and affordable.

The eIDC32 delivers the power you need in the smallest form factor in the industry. This high-performance eIDC32 door controller can handle more cards, more schedules and more functions than any single door controller on the market – making it an ideal solution for virtually any access control installation.

​

Specifications:

​

  • Doors - 1

  • Cards - 8,000 in Web Mode

  • 5,000 with Supervisor Plus

  • 64,000 with Intelli-M Access

  • Power - 12V DC @ 250 mA per reader

  • Types - Wiegand Format

  • Wire - 6 conductor, 500ft

  • Inputs - 1-4: Configurable inputs, contact closure or transistor-transistor logic (TTL), with optional end of line resistor (EOLR) supervision

  • Outputs - 1-2: Open collector outputs with electronic overload protection (max 450 mA at 12 VDC)*

  • 3: Form C, SPDT relay output with configurable initial state (max 5 A at 250 VAC)

  • 4: Built-in warning buzzer or alarm tone generator (max 80 dB)

  • Sub Category - Hardware

​

eIDC32 Door Controller Diagram:
