Key Features

  • Support Ultra265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade


2 Video Input: 16 IP Channel (16 Built-in POE ports)
Video Output: 1-HDMI(4K), 1-VGA(1080P), Simultaneous Output
Max Decoding Resolution: 8MP(4K)
Bandwidth: 160Mbps (In) / 64Mbps (Out)
HDD Storage: 2-SATA up to 10TB each
Network Ports: Single 10M/100M/1000M NIC
POE Power: Max 240W (Single port Max 30W)
Support 12MP Fisheye: Limited (Recording / Remote View only)
Support LPR Camera: Not supported
Chassis: 1U, Rackmountable (Rack ears not included in package)
NDAA Compliant: Yes
Warranty Period: 3 Years

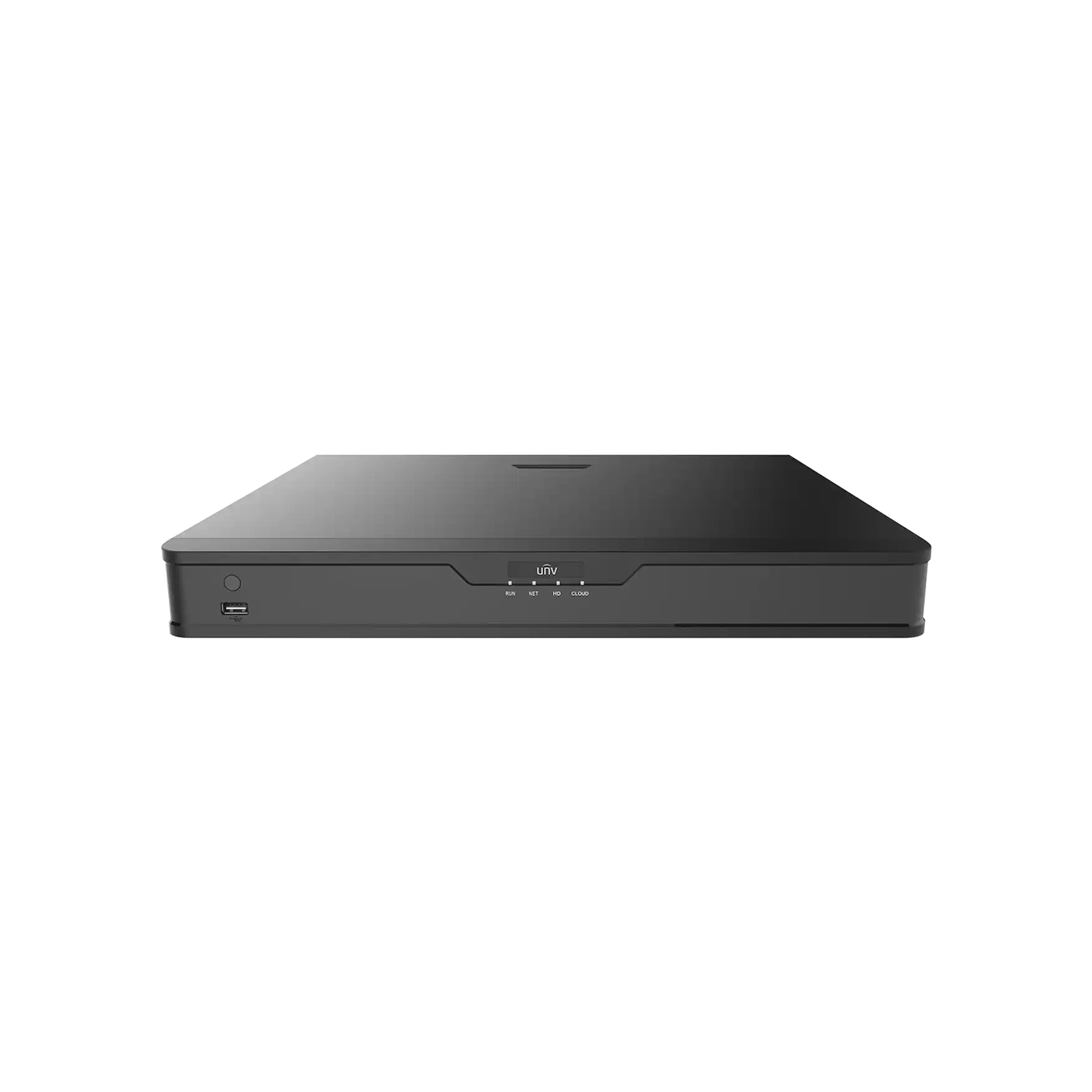

UNV Network Video Recorder 16 channel

SKU: NVR302-16S2-P16
